PDF Boxes Explained: MediaBox, TrimBox, BleedBox, and CropBox

To the average user, a PDF is simply a digital document that looks the same on every screen. However, for those in the printing and prepress industry, a PDF is a complex container of geometric data. Unlike a physical sheet of paper that has only one set of dimensions, a PDF page can have up to five different sets of boundaries, known as "page boxes."

These boxes—MediaBox, TrimBox, BleedBox, CropBox, and ArtBox—are defined in the PDF specification (ISO 32000). They tell printers, imposition software, and PDF viewers exactly which part of the document is the finished product, which part is the extra "bleed" area, and which part is the physical sheet. If you've ever had a print job come back with the wrong dimensions or missing edges, the culprit was almost certainly a misunderstood or misconfigured PDF page box.

In this comprehensive guide, we will deconstruct each of these boxes, explain their specific roles in the production workflow, and show you how tools like PDF Press help you navigate these technical requirements with ease.

The MediaBox is the most fundamental of all PDF boxes. It defines the largest possible area of the PDF page. In technical terms, it represents the boundaries of the physical medium on which the page is to be printed. If you were to print the PDF onto a large sheet of paper, the MediaBox would be the edges of that paper.

Every PDF must have a MediaBox. It is the only required box in the PDF specification. If other boxes (like the CropBox) are not explicitly defined, they usually default to the values of the MediaBox. In a typical prepress workflow, the MediaBox is often larger than the final product to account for printer marks, color bars, and registration targets.

When you use PDF Press to create a print-ready PDF, the MediaBox is automatically calculated based on your selected paper size or the combined layout of your imposed pages. Understanding the MediaBox is the first step in ensuring your digital design translates accurately to a physical sheet.

If the MediaBox is the sheet of paper, the TrimBox is the final product. It defines the intended dimensions of the finished page after it has been printed, folded, and trimmed. For a standard A4 flyer, the TrimBox will be exactly 210 x 297 mm. For a US Letter document, it will be 8.5 x 11 inches.

The TrimBox is critical for imposition software. When an imposition engine (like the WASM-powered core of PDF Press) arranges multiple pages onto a large press sheet, it uses the TrimBox as the anchor point. This ensures that the pages are aligned perfectly so that when the sheet is cut at the "crop marks," the resulting products are the correct size.

Without a properly defined TrimBox, a printer might not know where to cut your document. Many design applications like Adobe InDesign or Illustrator allow you to set the "Document Size," which is then exported as the TrimBox. If you are merging multiple files using our Merge/Combine PDFs tool, PDF Press preserves these TrimBox definitions to maintain consistency across your combined job.

Professional printing often involves "bleed," where the background colors or images extend beyond the trim line. This allows for a small margin of error during the cutting process. The BleedBox defines this extended area.

Usually, the BleedBox is set 3mm (or 0.125 inches) larger than the TrimBox on all sides. When a PDF is sent to a high-speed cutter, the blade might shift by a fraction of a millimeter. If your design stops exactly at the TrimBox, a slight shift could result in an ugly white sliver at the edge of your page. The BleedBox ensures that the color continues past the cut line.

If your source file is missing bleeds, you can use the BleedMaker tool in PDF Press. Our tool can automatically generate bleeds using four different methods: mirror (reflecting the edge pixels), repeat (extending the edge pixels), scale (slightly enlarging the page), or solid color. This is a lifesaver for prepress professionals who receive "print-ready" files that lack the necessary bleed margins. For more on this, check out our comprehensive print bleed guide.

The CropBox is often the source of most confusion for designers. While the other boxes are primarily for printing, the CropBox defines the region that a PDF viewer (like Adobe Acrobat, Chrome, or Preview) displays on the screen. It is essentially the "viewing window" of the PDF.

If a PDF has a CropBox that is smaller than its MediaBox, the extra content outside the CropBox is still in the file, but it is hidden from view. This is why you might open a file and see one size, but when you place it into an imposition tool, you see extra marks or bleed areas that were "hidden."

In many workflows, the CropBox is set equal to the MediaBox or the BleedBox. However, if you're using PDF Press to inspect a file, our Info panel will show you the actual dimensions of all these boxes, revealing what is truly inside the file versus what is just being displayed by your browser's PDF viewer.

The ArtBox is the least used of the five boxes, but it can be helpful in specific workflows. It defines the boundaries of the "meaningful content" on the page. For example, if you have a business card with a lot of white space around the logo, the ArtBox might be drawn tightly around just the logo itself.

Some layout applications use the ArtBox to determine how to "snap" a PDF when placing it into another document. In most general print production, the ArtBox is ignored in favor of the TrimBox and BleedBox. However, for specialized packaging or labeling jobs, the ArtBox can be used to define the "safety zone" where critical text and logos must reside to avoid being too close to the edge.

The PDF specification establishes a clear hierarchy for these boxes. Understanding this logic helps you troubleshoot files that behave unexpectedly. The rules are generally as follows:

• MediaBox: Always required. It is the outer limit.
• CropBox: Defaults to MediaBox if not specified. It defines the display area.
• BleedBox: Defaults to CropBox if not specified.
• TrimBox: Defaults to CropBox if not specified.
• ArtBox: Defaults to CropBox if not specified.

Critically, the CropBox, BleedBox, TrimBox, and ArtBox must all be contained within the MediaBox. You cannot have a TrimBox that is larger than your MediaBox. If you try to define such a file, most PDF engines will truncate the data at the MediaBox boundary.

When you use the PDF Press Expert Grid or Gang Sheet tools, our engine respects these hierarchies. It intelligently looks for the TrimBox first to determine the page size, falling back to the CropBox or MediaBox only if the standard print boxes are missing.

Before committing a job to a digital press or offset plate, you must perform "Preflight." This is the process of checking a file for technical errors. One of the most common preflight failures is a missing or incorrect TrimBox.

PDF Press includes a built-in PDF Preflight/Info panel that gives you an instant X-ray view of your file. When you upload a document, we analyze the headers and metadata to report:

• The exact dimensions of all five page boxes.
• Image resolution (DPI) to ensure high-quality prints.
• Font embedding status to prevent character substitution.
• Color space (CMYK vs RGB) analysis.

By identifying a missing TrimBox early, you can use our Resize or Crop tools to redefine the page boundaries without needing to go back to the original design software. This saves hours of back-and-forth between the designer and the print shop.

The magic of imposition happens when these digital boxes are mapped onto a physical press sheet. Let's look at a "Step and Repeat" example for a business card:

1. The imposition engine identifies the TrimBox (e.g., 3.5" x 2").
2. It looks for a BleedBox (e.g., 3.75" x 2.25") to ensure background continuity.
3. It calculates the gutter (the space between cards) based on the difference between the TrimBox and BleedBox.
4. It places Cutter Marks exactly at the corners of the TrimBox.
5. It places Registration Marks and Color Bars outside the MediaBox of the individual cards but within the MediaBox of the final press sheet.

PDF Press's 23 WASM-based tools handle this mapping with mathematical precision. Because the processing happens entirely in your browser using high-performance WebAssembly, you get instant previews of how these boxes interact on the sheet. No more "guessing" where the cut will fall.

What happens when things go wrong? Here are three common scenarios and the PDF Press solution:

1. "The file looks right on screen but prints too small."

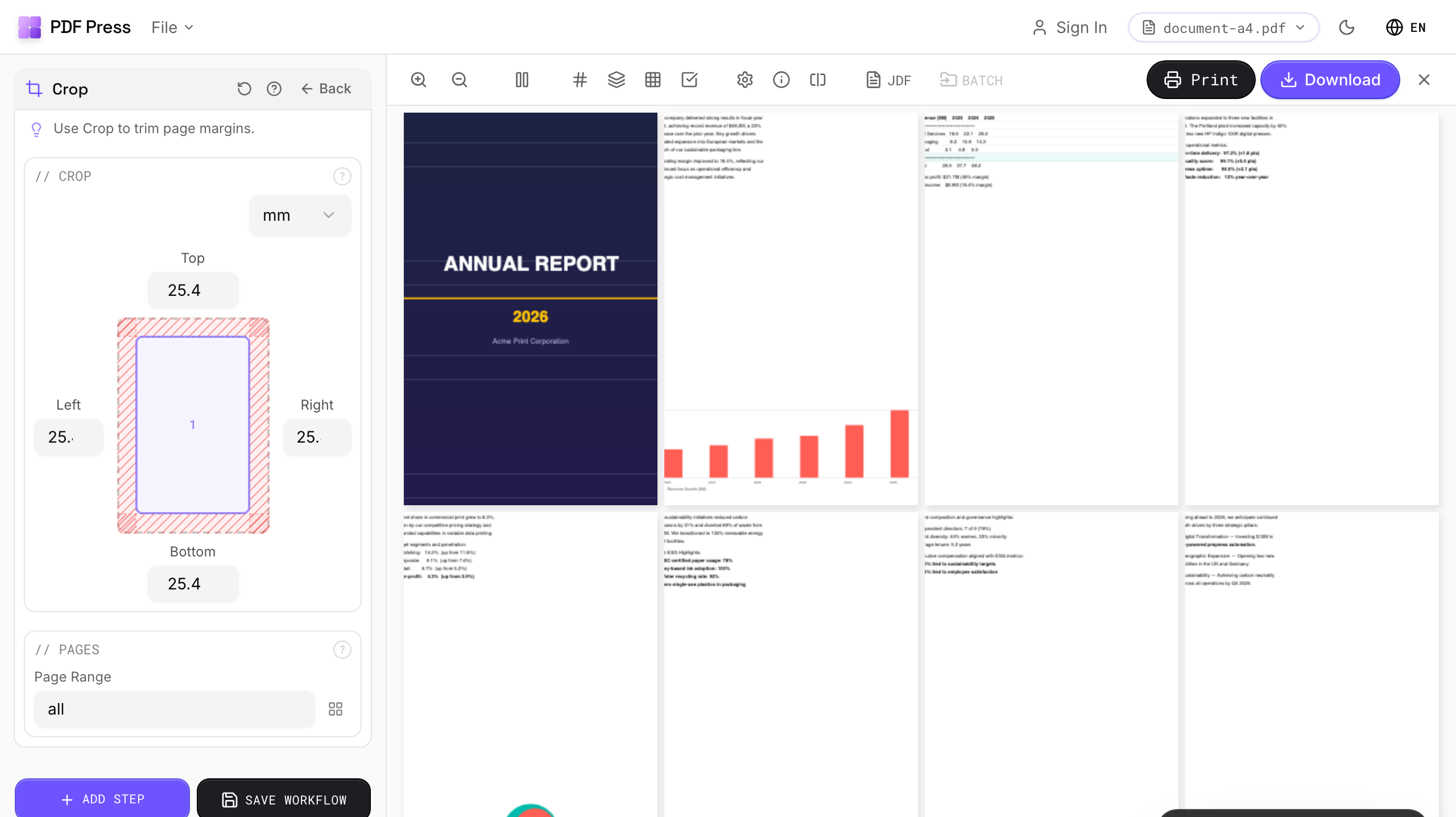

This usually happens because the file has a large MediaBox (including marks) but no TrimBox. The printer might be scaling the MediaBox to fit the paper. Fix: Use the PDF Press Crop tool to define a precise TrimBox.

2. "The background is cut off."
This occurs when the designer provided a TrimBox but forgot the BleedBox. There is no extra image data for the cutter. Fix: Use the BleedMaker tool in PDF Press to generate artificial bleeds using the "Mirror" method.

3. "The PDF viewer shows white space around my design."
The CropBox is likely set to a large MediaBox size. Fix: Use the PDF Press Page Manager to extract the pages and then use the Resize tool to snap the CropBox to the actual design dimensions.

Mastering these fixes is what separates a standard designer from a prepress expert. With PDF Press, these advanced corrections are available , directly in your browser.

PDF page boxes might seem like a dry, technical detail, but they are the language of professional print. By understanding the distinction between the physical sheet (MediaBox), the viewing window (CropBox), the final product (TrimBox), and the safety margin (BleedBox), you gain total control over your production workflow.

At PDF Press, we've built a suite of tools specifically designed to manage this complexity. Whether you are using our Booklet maker, Gang Sheet optimizer, or our new Barcode and QR variable data tools, you can trust that the underlying page geometry is being handled with industry-standard rigor.

Ready to put your knowledge to the test? Upload a file to PDF Press today and check the Info panel to see exactly how your PDF boxes are defined. It's the fastest way to ensure your next print project is perfect from the first sheet to the last.
