PDF Transparency Flattening: When and How to Flatten for Print

In the high-stakes world of professional printing, what you see on your monitor isn't always what you get on the press. This discrepancy is often rooted in one of the most complex aspects of digital document architecture: transparency. From the subtle soft-glow effects of a high-end fashion catalog to the layered shadows of a complex infographic, transparency in pdf files has become a cornerstone of visual communication. However, the path from a designer's creative vision to a physical print product is paved with technical challenges that require a deep understanding of pdf transparency flattening.

Historically, the printing industry was built on opaque foundations. Traditional offset printing relies on physical plates and liquid ink, a process that doesn't inherently understand "opacity percentages" or "multiply blend modes." Early versions of the PDF format reflected this reality, requiring every element to be a solid, opaque shape. As design software like Adobe Illustrator and InDesign evolved, they introduced sophisticated transparency effects that were eventually codified in PDF 1.4. While modern digital workflows can handle these live effects, many high-end offset and digital printing systems—particularly those using legacy Raster Image Processors (RIPs)—still require a flattened file to ensure accuracy. If you are preparing files for professional production, understanding our print-ready PDF guide is essential to ensure your vision translates perfectly to paper.

The transition from "live" transparency to "flattened" output is both an art and a science. It involves a complex set of mathematical transformations that simplify the document structure without sacrificing the visual integrity of the design. This guide will walk you through the intricacies of the flattening process, helping you decide when to flatten, how to do it correctly, and how to troubleshoot the most common issues that arise in the prepress pipeline.

At its core, transparency flattening is the process of converting "live" transparent elements into a series of opaque shapes and raster images that visually replicate the original look. When you flatten pdf for print, the software performs a high-speed analysis of every overlapping object on the page. It looks at the "transparency stack"—the layers of objects that interact with one another—and calculates the resulting color for every intersection area.

Consider the mathematical complexity of this task. A single transparent object doesn't just have a color; it has a set of instructions on how it interacts with the objects beneath it. These instructions, known as "blend modes," include operations like Multiply, Screen, Overlay, and Color Burn. For instance, the "Multiply" blend mode multiplies the color values of the top object with those of the background, creating a darker, richer result. During flattening, the software must calculate the exact CMYK or Spot Color value of this result and create a new, opaque object that holds that color. If the background is a complex gradient or a photograph, the flattener may be forced to rasterize the entire area into a single bitmap image.

This transformation is critical because legacy PostScript-based RIPs are essentially blind to transparency. They expect a list of solid shapes and images to be drawn in a specific order. Without flattening, these RIPs might only see the top-most object, completely ignoring the layers beneath it, or they might crash while trying to interpret a command they don't recognize. By using professional tools like PDF Press, you can manage these complex, flattened files with confidence, ensuring they are laid out correctly for the final press run without introducing new artifacts.

The evolution of the PDF standard is a roadmap of the printing industry's technological progress. Understanding which version of PDF you are working with is the first step in diagnosing pdf/x-1a transparency issues:

• PDF 1.3 (Acrobat 4): This version, released in 1999, does not support live transparency. Any file saved or exported as PDF 1.3 must be flattened during the export process. This version is the foundation for the widely used PDF/X-1a standard, which was designed to be the "least common denominator" for reliable print exchange.
• PDF 1.4 (Acrobat 5): Released in 2001, this was a revolutionary update that introduced live transparency and transparency groups. It allowed designers to keep effects editable within the PDF file itself, shifting the burden of flattening from the designer's workstation to the printer's RIP.
• PDF 1.5 to 1.7: These versions refined how transparency is handled, introducing support for JPEG 2000 compression, OpenType fonts, and 3D data. PDF 1.6 (Acrobat 7) and PDF 1.7 (Acrobat 8/9) are the basis for the PDF/X-4 standard, which is now the preferred choice for modern, "transparency-aware" print workflows.

The choice between PDF/X-1a and PDF/X-4 is often dictated by your printing partner. If they ask for PDF/X-1a, they are explicitly requesting a flattened file. If they ask for PDF/X-4, they are likely using a modern Adobe PDF Print Engine (APPE) that can handle live transparency natively, often resulting in better quality and smaller file sizes. For a more detailed comparison of these formats, see our PDF/X standards guide.

The decision to flatten pdf for print is primarily a matter of risk management. Even in the age of advanced digital presses, there are several critical reasons why flattening remains a standard practice in many prepress departments:

1. RIP Compatibility: Many high-end offset presses still rely on legacy RIP hardware that was manufactured before the widespread adoption of the Adobe PDF Print Engine. These systems use PostScript Level 3, which has limited support for live transparency. If you send a file with live transparency to one of these systems, it may result in missing elements, incorrect colors, or a complete system failure.

2. Predictability and Control: When you flatten a PDF on your own machine, you are the one making the decisions about how colors blend and how images are rasterized. You can use overprint preview for transparency to see exactly what the final result will look like. If you leave the flattening to the printer's RIP, you are surrendering that control, hoping that their settings match your expectations. This is especially dangerous when dealing with complex spot color interactions.

3. File Complexity and Rendering Time: A PDF with thousands of transparent vector objects (such as a complex map or a detailed technical illustration) can be incredibly taxing on a RIP. The mathematical calculations required to render these objects in real-time can cause the RIP to "choke," leading to long production delays. Flattening simplifies these complex instructions into a more manageable set of shapes and images, ensuring the press can run at full speed.

At PDF Press, we recommend verifying your files' transparency status using our built-in Preflight/Info panel before starting your imposition. This allows you to catch potential issues early in the process, saving time and money later.

The flattening process, while necessary, is not without its side effects. Designers and prepress technicians must be vigilant for several common artifacts that can compromise the quality of the final print:

Stitching (White Lines): This is perhaps the most common complaint in the world of pdf transparency flattening. As the flattener slices vector objects into smaller, opaque pieces to preserve as much vector data as possible, it creates "atomic" slivers. On high-resolution screens, these can appear as hair-thin white lines between objects. In most cases, these are mere screen artifacts caused by anti-aliasing in the PDF viewer and will not appear in the final print. However, if the flattener resolution is too low, these gaps can become real.

The "Fat" Text Effect: If a transparent element overlaps a piece of text, the flattener may be forced to convert that text into a raster image or a vector outline. When text is rasterized at a low resolution, it loses its crisp edges and can appear slightly thicker or "fuzzier" than the surrounding text. This is why keeping your text on the top-most layer is a fundamental rule of design for print.

Color Shift Boxes (Yucky Discolored Box): This occurs most frequently when a transparent effect is placed over a spot color background. If the transparency group color space is set to RGB but the document is CMYK, the flattener may convert the area under the transparency to a different color space, creating a visible box that doesn't match the rest of the spot color. Always ensure your transparency blend space matches your intended output (usually CMYK).

The heart of the flattener is the "Raster/Vector Balance" setting. This controls the vector vs raster flattening algorithm and determines how much of your artwork is preserved as scalable paths versus how much is turned into pixels. Finding the right balance is key to producing a high-quality PDF.

When the slider is set to "100" (All Vectors), the flattener works overtime to create complex paths that replicate the transparency effects. While this results in the highest quality and keeps your file resolution-independent, it can lead to incredibly complex files that are difficult for some RIPs to process. Conversely, setting the slider to "0" (All Rasters) converts the entire page (or the affected area) into a single high-resolution bitmap. This is the safest option for RIP compatibility but can lead to large file sizes and potentially loss of detail in fine text or lines.

For professional printing, the "High Resolution" preset—which typically sets the balance to 100—is the gold standard. It uses a rasterization of pdf transparent elements threshold that preserves text and clean lines as vectors while only rasterizing the most complex overlapping areas. If you're using PDF Press, our WASM-based engine is optimized to handle these high-complexity vector files, providing a seamless transition from your design software to the final imposition layout.

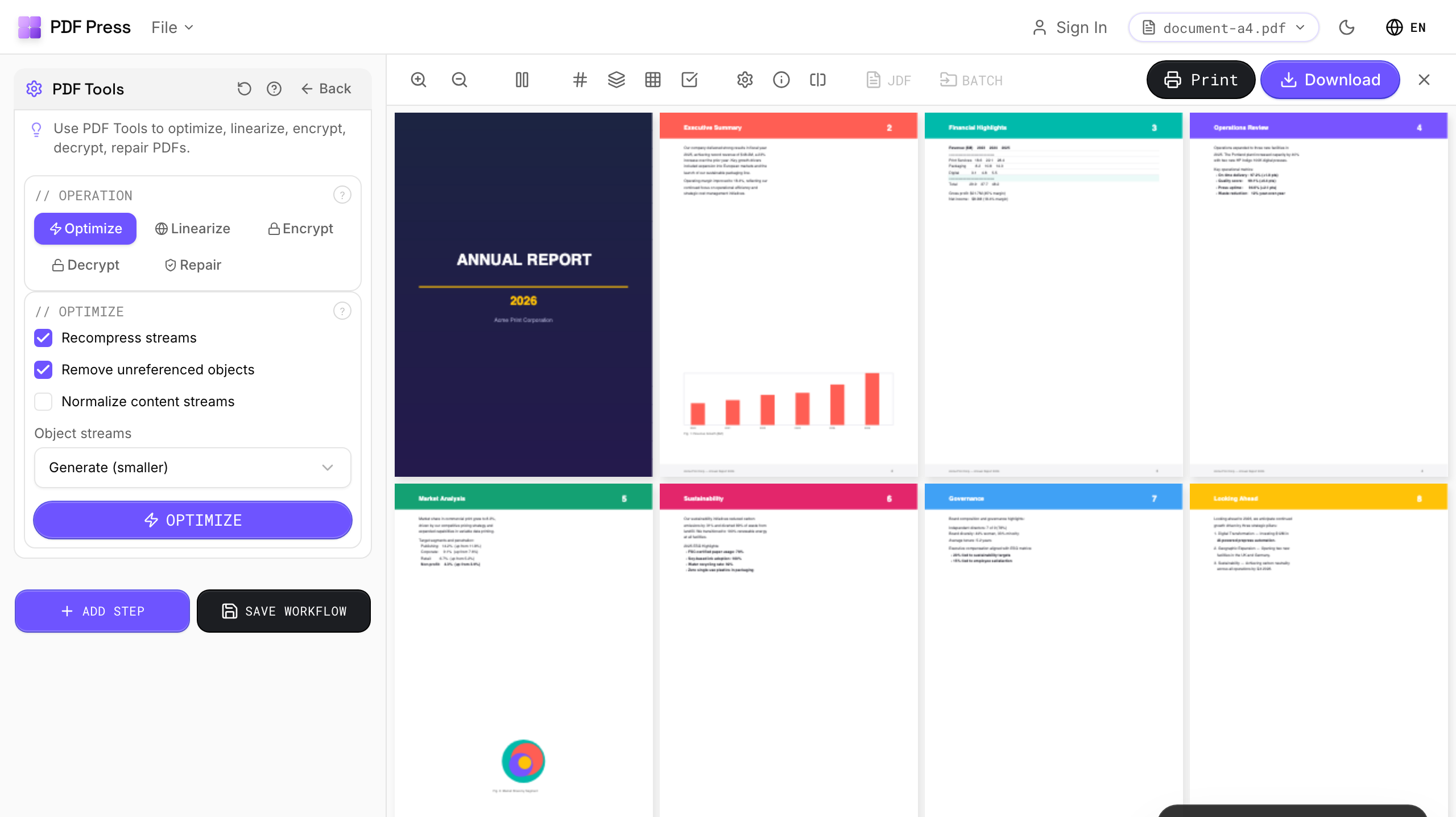

Adobe Acrobat Pro provides the most robust set of tools for managing transparency. The adobe acrobat transparency flattener allows you to create custom presets tailored to your specific press requirements. Here are the key settings you should master:

• Raster/Vector Balance: As discussed, keep this at 100 for high-quality print. This ensures that as much data as possible remains in vector format.
• Line Art and Text Resolution: For high-end print, this should be set to 1200 ppi. This resolution is used for any text or vector paths that must be rasterized.
• Gradient and Mesh Resolution: Set this to at least 300 ppi. This is the resolution for any gradients or complex blends that are rasterized.
• Convert All Text to Outlines: This is a powerful but dangerous tool. It prevents font substitution issues by turning text into shapes, but it can also make the text appear slightly bolder and prevents the RIP from applying font-specific optimizations (like hinting).
• Convert All Strokes to Outlines: Similar to text, this turns paths into shapes. It's useful for ensuring that thin lines don't "disappear" during the flattening process.
• Clip Complex Regions: This setting helps manage the boundaries between rasterized and vector areas, reducing the likelihood of stitching artifacts.

By creating and saving your own high resolution transparency flattener presets, you can standardize your workflow and ensure consistent results across all your projects. Always use the transparency grid in pdf preview to see exactly how your settings will affect the document before you commit to the final save.

While Acrobat is the ultimate tool for flattening, you can also perform these operations directly within your design software during the PDF export process. Here is how it's handled in the most popular apps:

Adobe InDesign: When you export a PDF (File > Export), choosing the "[PDF/X-1a:2001]" preset will automatically trigger the flattener. You can manage the settings under the "Advanced" tab, where you can select your transparency flattener preset. InDesign also has a "Flattener Preview" panel (Window > Output > Flattener Preview) that allows you to see the "red zones" where flattening will occur on your layout.

Adobe Illustrator: Like InDesign, Illustrator flattens during the "Save As PDF" process when a legacy version (1.3) is selected. However, Illustrator also allows you to flatten objects manually via Object > Flatten Transparency. This is useful if you want to see the resulting vector paths and manually clean them up before exporting.

Affinity Publisher: Affinity tools offer a "PDF (for print)" preset that flattens by default. You can control the rasterization threshold in the "More" section of the export dialog. While not as granular as Adobe's tools, it's highly effective for most standard print jobs.

Regardless of the software you use, the final step should always involve a professional imposition tool. PDF Press allows you to take these exported files and arrange them for production using our 32+ tools, including Crop, BleedMaker, and Slugline, ensuring that your perfectly flattened pages are perfectly placed on the final press sheet.

When we built PDF Press, we didn't just want to create another imposition tool; we wanted to build a prepress powerhouse that respects the technical integrity of your files. Our 23 original WASM-based tools, such as Booklet, N-Up, and Grid, are engineered to handle the complex internal structures of both live and flattened PDFs.

One of the biggest challenges in browser-based PDF processing is maintaining the precision of the document's coordinate system. When a PDF is flattened, it often contains thousands of tiny, precisely placed objects. A lesser tool might introduce rounding errors that lead to visible gaps or misalignments. PDF Press's engine uses high-precision math to ensure that every object, whether it's a high-resolution raster image or a complex vector path, stays exactly where it belongs.

Furthermore, our new suite of client-side tools—including Barcode/QR generation with CSV variable data and Distortion Compensation for flexo and gravure printing—allows you to add production-critical elements without ever sending your files to a server. This privacy-first approach, combined with our robust Page Manager and 200+ production-ready templates, makes PDF Press the ultimate tool for the modern prepress professional. For those looking to dive deeper into our quality standards, we recommend reviewing our PDF preflight guide.

The best way to handle transparency issues is to design with the flattener in mind. Here are the top "pro" tips for creating print-ready files that won't break the RIP:

• Isolate Transparency: Whenever possible, keep transparent objects on their own layers, away from critical text and fine line art. This gives the flattener more room to work and reduces the risk of rasterizing important vector elements.
• Manage the Blend Space: In Adobe InDesign, always check your Transparency Blend Space (Edit > Transparency Blend Space). For print, this should ALWAYS be set to "Document CMYK." If it's set to RGB, your colors will shift unexpectedly when the flattener calculates the blend results.
• Use High-Resolution Images: If you know an area will be rasterized during flattening, ensure the source images in that area are high resolution (300 DPI or higher). The flattener cannot "invent" detail that isn't there; it can only work with the resolution you provide.
• Simplify Complex Effects: If a design has hundreds of overlapping transparent layers, consider manually rasterizing that specific section in Photoshop before placing it into your layout. This simplifies the final PDF and makes it much easier for the flattener and the RIP to handle.

By following these best practices, you reduce the workload on the flattener and the RIP, resulting in faster processing times and a much lower risk of error. Remember to use the overprint preview for transparency frequently during the design process to catch potential color issues early.

Transparency and spot colors are notoriously difficult to mix. When a transparent object overlaps a Pantone color, the flattener must decide whether to keep the spot color (which requires "overprinting") or convert the entire area to CMYK. This is where most pdf/x-1a transparency issues originate.

To avoid "white boxes" around shadows over spot colors, ensure that "Overprint Preview" is turned on in your design software and in Acrobat. If the shadow looks like it's "knocking out" the spot color (creating a white hole underneath), you need to adjust your flattener settings to "Preserve Overprints."

Another common issue is ICC profile conflicts. If your transparent group has an assigned color profile that differs from the document's output intent, the flattener may perform a color conversion that dulls your vibrant colors. Always synchronize your color settings across your creative suite and use a consistent output intent (such as GRACoL or FOGRA) throughout the entire workflow. If you encounter persistent issues, check our troubleshooting guide for print-ready PDF guides which covers many of these color-related pitfalls in depth.

Before you send your next project to the press, run through this comprehensive checklist to ensure your pdf transparency flattening is flawless:

1. Standard Check: Is the file PDF/X-1a (flattened) or PDF/X-4 (live) as per the printer's request?
2. Version Check: If flattened, is the PDF version 1.3?
3. Resolution Check: Are flattener raster settings at 300 DPI (images) and 1200 DPI (text/vector)?
4. Text Layering: Is all critical text on the top-most layer, above any transparent effects?
5. Blend Space: Is the Transparency Blend Space set to CMYK for print?
6. Spot Colors: Have you checked for "white boxes" or shifts over Pantone colors?
7. Stitching: Have you verified that any visible white lines on screen disappear at high zoom?
8. Overprint Preview: Have you viewed the file in Acrobat with "Overprint Preview" turned on?
9. Preflight: Have you run a "Transparency Detected" preflight check in Acrobat?
10. Imposition: Have you used PDF Press to verify the file and prepare the final production layout?

By following this rigorous process, you join the ranks of elite prepress professionals who deliver perfect files every time. Transparency doesn't have to be a mystery; with the right knowledge and the right tools like PDF Press, it's just another part of a successful print workflow.
