Flexographic Printing File Prep: PDF Setup for Flexo Plates

Flexographic printing is the dominant process for packaging, labels, corrugated boxes, paper bags, and flexible films. It accounts for roughly 35% of all global print production by volume, yet the prepress requirements for flexo are radically different from those of offset or digital printing. A PDF that is perfectly prepared for a sheetfed offset press will almost certainly fail on a flexographic press if it has not been specifically adapted for the flexo process.

The reason is mechanical: flexo uses flexible photopolymer plates wrapped around rotating cylinders. The plate physically stretches when mounted on the cylinder, ink is transferred through an engraved anilox roller rather than a flat blanket, and the substrate -- whether corrugated board, polyethylene film, or metallic foil -- behaves nothing like coated paper. Every one of these differences demands specific adjustments in your PDF file before it can become a usable printing plate.

This guide walks through every step of flexographic printing file prep, from initial design considerations through distortion compensation, trapping, color separation, and final plate-ready output. Whether you are a designer submitting files to a flexo trade shop or a prepress operator preparing plates in-house, these principles will help you produce cleaner files, fewer plate remakes, and better print quality on press. For automated layout and distortion tools, PDF Press provides browser-based distortion compensation and imposition specifically designed for flexo and gravure workflows.

Before diving into the technical details, it is essential to understand why flexo files cannot simply follow offset prepress conventions. The fundamental differences between these two processes shape every decision in flexo file preparation:

• Plate flexibility and distortion: Offset plates are flat aluminum sheets clamped to a rigid cylinder. Flexo plates are flexible photopolymer sheets (typically 1.14 mm to 6.35 mm thick) wrapped around a cylinder, which causes the plate to stretch in the circumferential (around-the-cylinder) direction. This stretch must be compensated for in the file before plate imaging.
• Ink transfer mechanism: Offset uses a blanket cylinder and fountain solution to control ink. Flexo uses an anilox roller -- a ceramic or chrome roller engraved with microscopic cells that meter a precise volume of ink onto the plate. The anilox cell volume, count, and geometry directly affect achievable tonal range, minimum dot size, and color density.
• Dot gain behavior: Flexo exhibits significantly higher dot gain than offset. A 50% dot on the plate may print as a 70-75% dot on the substrate. This is caused by the "kiss impression" (the slight pressure where the plate contacts the substrate) and the fluid dynamics of low-viscosity flexo inks. Files must be curve-compensated to account for this gain.
• Substrate variability: Offset typically prints on relatively uniform paper or board. Flexo prints on substrates ranging from ultra-smooth polyester film to rough, absorbent corrugated linerboard. Each substrate absorbs and spreads ink differently, requiring substrate-specific file adjustments.
• Minimum reproducible dot: Offset can reliably hold a 1-2% dot. Conventional flexo plates struggle below 3-5%, and even HD (High Definition) flexo plates typically have a minimum of 1-2%. Highlights in flexo tend to "blow out" (disappear) on press, so artwork must be designed with higher minimum tonal values.

These differences mean that a generic print-ready PDF is only the starting point for flexo. The file must then undergo a series of flexo-specific transformations before it is suitable for plate imaging.

Flexo distortion compensation (also called "shrinkback," "squeeze," or "pre-distortion") is the single most important step in preparing a PDF for flexographic plate making. When a flexible plate is wrapped around a print cylinder, it physically stretches in one direction -- the circumferential direction (the direction of web travel). The amount of stretch depends on two factors: the plate thickness and the cylinder repeat length (circumference).

The distortion formula is straightforward:

Distortion % = (plate thickness x 2 x pi) / repeat circumference x 100

For a typical scenario -- a 1.70 mm plate on a 600 mm repeat -- the distortion is approximately 1.78%. This means the file must be shrunk by 1.78% in the print direction (and only the print direction) before plate imaging. If you skip this step, every element in the print direction will be stretched by that percentage on press, making circles into ovals, distorting text, and misaligning registration between colors.

Key considerations for distortion compensation:

• Direction matters: Compensation is applied only in the circumferential (around-the-cylinder) direction, not across the web. The cross-web dimension remains unchanged because the plate does not stretch in that direction when mounted.
• Plate thickness is measured at the printing surface: Use the total plate thickness including the adhesive-backed tape (if it is integral to the plate). Consult your plate manufacturer's specification sheet for the exact value.
• Repeat length must be exact: Even a 1 mm error in the repeat measurement changes the distortion calculation. Always confirm the gear pitch, tooth count, and resulting repeat with your press specifications.
• Apply before screening: Distortion must be applied to the continuous-tone file before halftone screening. Distorting a pre-screened file will deform the dot structure and degrade print quality.

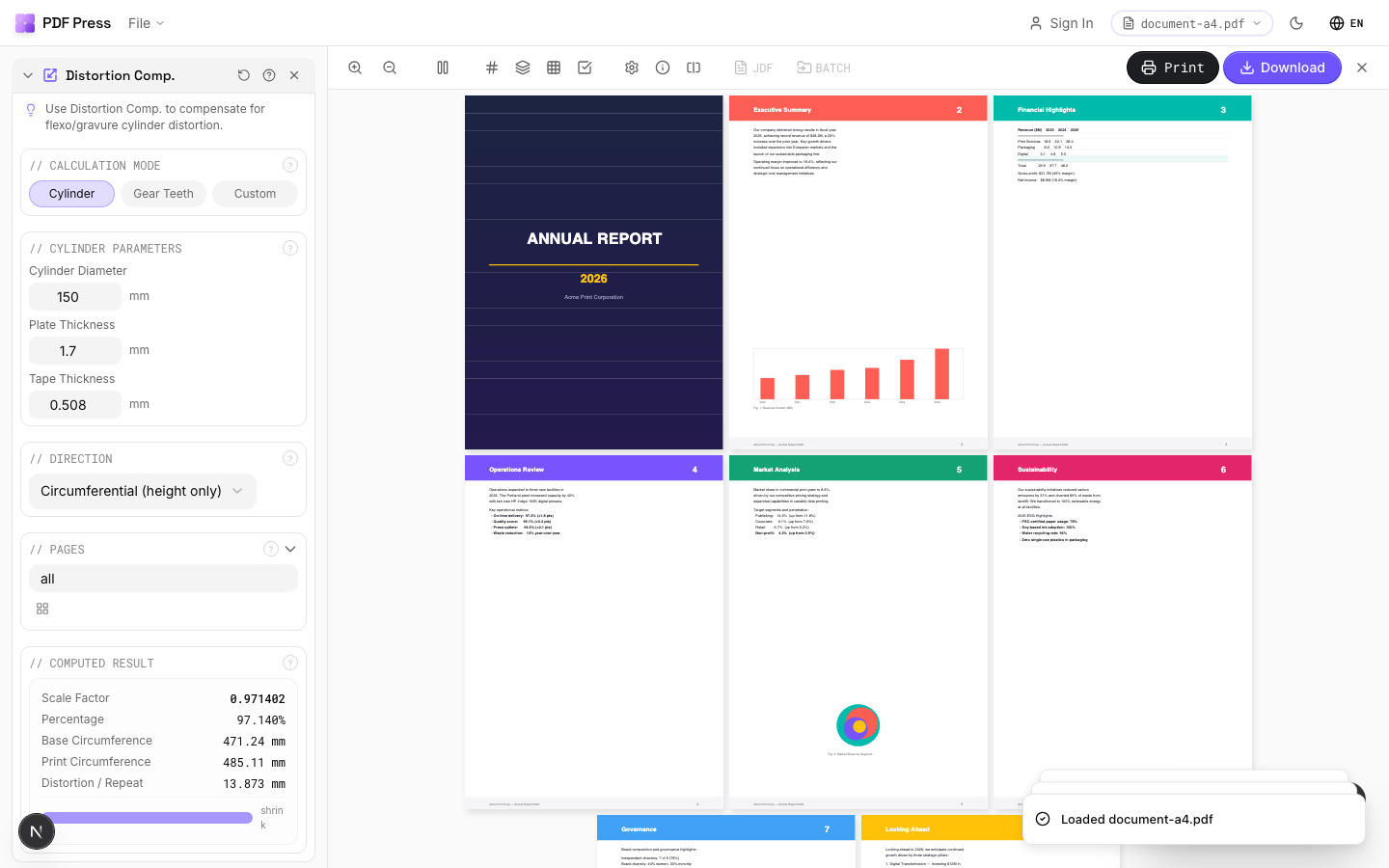

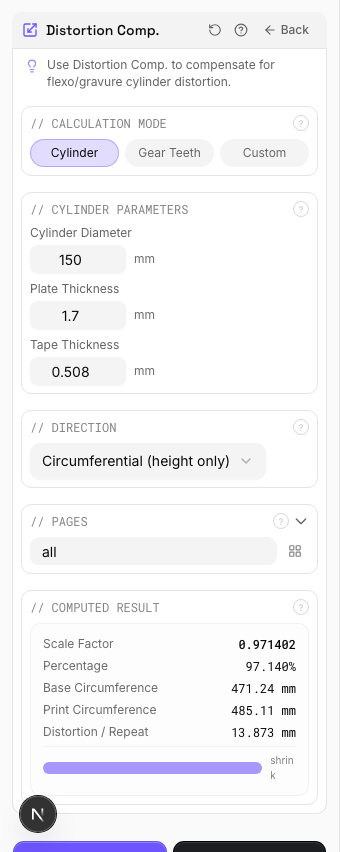

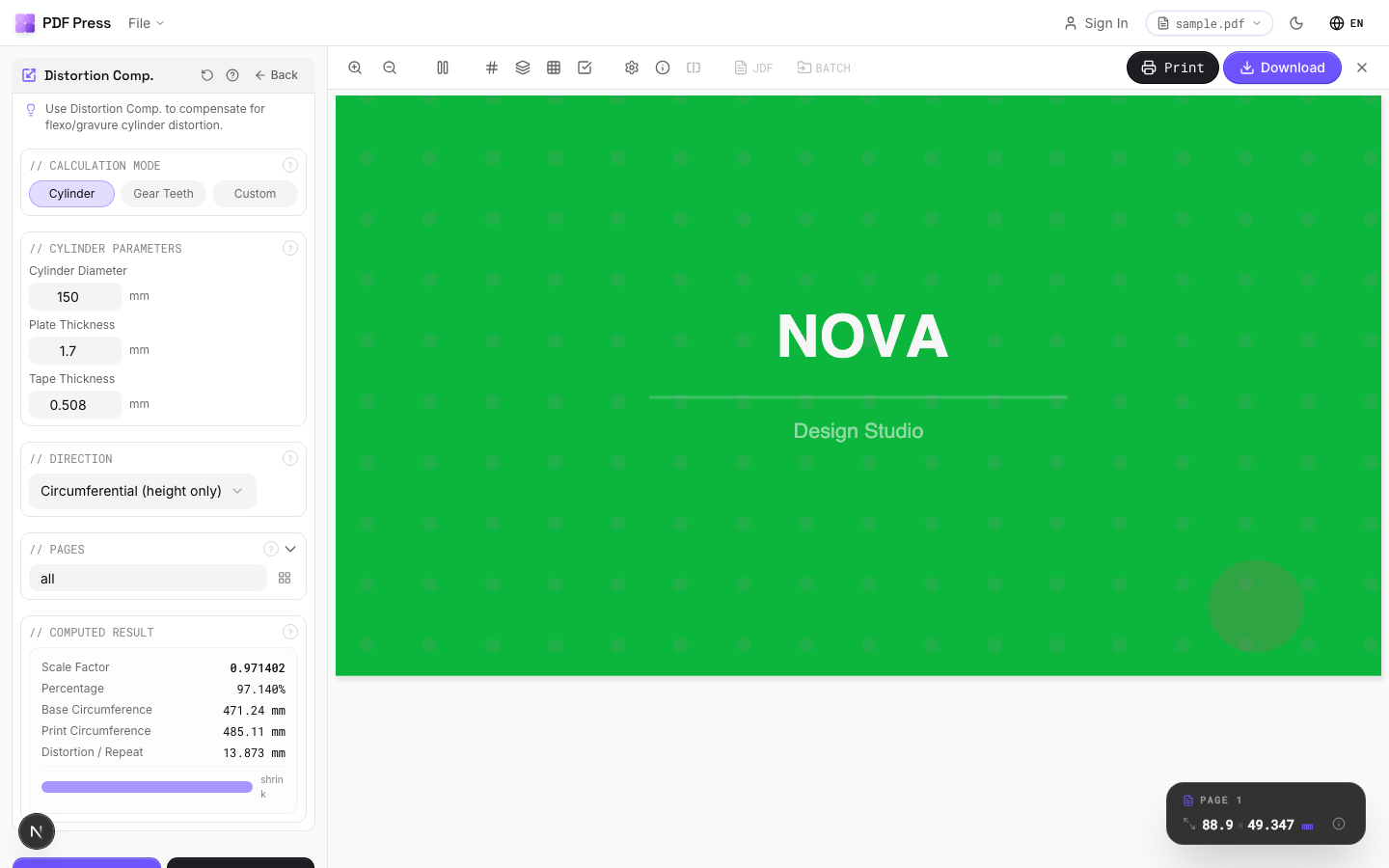

PDF Press includes built-in distortion compensation for flexographic and gravure workflows. You can specify your plate thickness and repeat length, and the tool automatically applies the correct pre-distortion to your PDF before output -- all in the browser, with no file uploads to external servers. This eliminates the manual calculation and scaling errors that are the most common source of plate remakes in flexo shops.

Trapping -- the intentional overlapping of adjacent colors to prevent white gaps caused by misregistration -- is far more critical in flexo than in offset. Flexographic presses, particularly wide-web CI (central impression) presses, can have registration tolerances of 0.15 mm to 0.5 mm, compared to 0.05-0.1 mm on a modern offset press. This means flexo traps must be significantly wider.

Typical trap widths for flexo:

• Film and foil substrates: 0.15 mm to 0.25 mm (relatively tight because CI presses offer good registration on stable substrates)
• Paper and board substrates: 0.25 mm to 0.4 mm (looser due to substrate dimensional instability)
• Corrugated post-print: 0.5 mm to 1.0 mm or more (corrugated is inherently unstable and press registration is coarser)
• Pre-print for corrugated lamination: 0.2 mm to 0.3 mm (printed on stable liner before lamination)

Flexo trapping rules differ from offset:

• Lighter color spreads into darker: The standard trapping rule applies, but in flexo you must also consider the ink opacity. Flexo inks can be transparent (process colors) or highly opaque (whites, metallics). Opaque inks should generally be choked (pulled inward) rather than spread, regardless of their visual lightness.
• Avoid trapping into white: On film substrates where white ink is printed as an undercoat, trapping between the white and the process colors requires special attention. The white should extend under all process colors by at least the full trap width -- and in many cases, the white is "choked" (made slightly smaller than the process color area) to ensure no white peeks out at the edges.
• Simplify where possible: Because flexo registration is less precise, complex designs with many adjacent color boundaries are risky. Where possible, use common-color trapping (where adjacent colors share a component, creating a natural trap) or redesign artwork to place color transitions on top of backgrounds rather than abutting them.

Trapping is typically performed in dedicated prepress software (Esko ArtPro+, Hybrid Software CLOUDFLOW, or Adobe Illustrator with manual trap objects). The traps must be in place in the PDF before it is sent for plate imaging. Automated trapping tools in RIP software can also be used, but flexo-specific trap settings must be configured -- using offset defaults will produce traps that are too narrow for flexo press tolerances.

Color separation in flexo is more constrained than in offset. The achievable color gamut of a flexographic press depends heavily on the anilox specification, ink formulation, and substrate. A standard CMYK flexo separation on brown kraft linerboard will reproduce a fraction of the gamut available on a sheetfed offset press printing on coated white paper.

Key color separation considerations for flexo PDFs:

• Spot colors dominate packaging: Unlike commercial offset work where CMYK process printing is the norm, flexographic packaging relies heavily on spot (premixed) Pantone or custom-matched inks. A typical corrugated box might use 2-3 spot colors rather than CMYK. Your PDF must define these as named spot color channels with correct Pantone references, not as CMYK process builds.
• Extended gamut (ECG/7-color) printing: Some advanced flexo operations use fixed ink sets of 7 colors (typically CMYKOGV -- adding Orange, Green, and Violet) to reproduce a wider gamut without custom-mixed spot inks. If your printer uses extended gamut, your files may need to be separated into this specific 7-color space rather than traditional CMYK or spots.
• Total ink coverage limits are lower: Flexo substrates, especially absorbent materials like uncoated paper and corrugated, cannot accept the same ink volume as coated offset stock. Maximum total ink coverage is typically 260-300% for film, 240-280% for coated paper, and as low as 200-240% for corrugated. Exceeding these limits causes ink trapping failures (wet-on-wet issues), blocking (sheets sticking together), and slow drying.
• White ink as a separation: When printing on transparent or metallic films, a white ink layer is printed first to provide an opaque background. This white must be included as a separate spot color channel in your PDF, with correct knockout and overprint settings. The white typically extends slightly beyond the process color area to ensure full coverage.
• Print sequence affects color: Flexo presses print colors in a fixed sequence, and wet ink is deposited on top of wet ink. The print order (e.g., white first, then yellow, magenta, cyan, black last) affects how colors interact. Your color separations must account for the specific press's print sequence -- this information comes from your printer.

For guidance on managing color consistency across your workflow, see our color management for print guide.

Halftone screening -- the process of converting continuous-tone images into patterns of dots that a press can reproduce -- is where flexo diverges most dramatically from offset. The screening parameters directly determine the achievable print quality, and getting them wrong results in muddy shadows, blown-out highlights, or visible moiré patterns.

Line screen (LPI) selection for flexo:

• Corrugated direct print: 65-100 LPI. The rough surface of corrugated board cannot resolve fine dot patterns. Higher LPI on corrugated causes excessive dot gain and shadow plugging.
• Corrugated pre-print (liner): 120-150 LPI. Printing on smooth liner before lamination allows finer screens.
• Paper bags, folding cartons: 120-150 LPI. Standard for most paper-based flexo work.
• Film and flexible packaging: 133-175 LPI. Smooth film substrates allow the finest screens in flexo. HD flexo plates can push to 200 LPI on premium film work.

Dot shape matters in flexo:

• Round dots: Standard for highlight areas (0-30%). Round dots have predictable gain characteristics and produce smooth vignettes.
• Elliptical dots: Preferred for midtones (30-70%). Elliptical dots provide a smoother transition through the critical 50% "dot jump" zone where conventional round dots suddenly merge and cause a visible tonal shift.
• Square dots: Sometimes used for shadow areas (70-100%) where maximum ink coverage is needed.
• Hybrid dot shapes: Modern screening technologies (such as Esko HD Flexo, Kodak DigiCap NX, or Miraclon NX) use variable dot shapes that transition from round to elliptical to square across the tonal range, optimized specifically for flexo dot gain characteristics.

Minimum and maximum dot percentages:

The achievable tonal range in flexo is narrower than in offset. Conventional plates typically hold a minimum dot of 3-5% and a maximum of 95%. HD flexo plates extend this to approximately 1-99%. Your PDF file must be adjusted so that no tonal values fall outside the reproducible range for your specific plate technology. Highlights below the minimum will disappear entirely, and shadows above the maximum will fill in (plug), losing all detail.

Screening is normally applied by the RIP during plate imaging, not in the PDF file itself. However, the PDF must be prepared with the correct tonal curves (see "Curve Compensation" below) that account for the specific screening and dot gain characteristics of the target press.

Dot gain -- the increase in apparent dot size from plate to printed substrate -- is the single biggest quality variable in flexographic printing. A 40% dot on the plate routinely prints as a 55-65% dot on the substrate, depending on ink viscosity, anilox volume, impression pressure, substrate absorbency, and plate hardness. Without curve compensation (also called "bump curves" or "plate curves"), flexo prints appear dark, muddy, and lacking in contrast.

How curve compensation works:

A compensation curve is applied to the file (or at the RIP) that reduces tonal values by the expected dot gain. If a 40% dot gains 20% on press (printing as 60%), the curve reduces the file value at 40% to approximately 20%, so that after gain, it prints at the target 40%. The curve is typically S-shaped: aggressive compensation in the midtones (where gain is highest), moderate compensation in the quarter-tones, and minimal adjustment in the deep shadows and extreme highlights.

Types of compensation curves:

• Press characterization curves: Based on measured dot gain data from a specific press, anilox, ink, and substrate combination. These are the most accurate but require press fingerprinting (printing a standardized target and measuring the results with a spectrophotometer).
• Generic plate curves: Supplied by plate manufacturers as starting points for their specific plate technology. These provide reasonable results for shops that cannot fingerprint every press configuration.
• ISO/FIRST standards: The FIRST (Flexographic Image Reproduction Specifications and Tolerances) guidelines provide standardized aim curves for different substrate categories. Adhering to FIRST ensures consistency across different printers and converters.

Where to apply curves in your workflow:

Curves can be applied at several points: in the design application (adjusting the source images), in the PDF as a transfer function, or at the RIP during plate imaging. The industry best practice is to apply curves at the RIP, because this allows the same source PDF to be used across different press configurations by simply changing the RIP curve. If your printer handles curve application, submit your PDF with standard (linear) tonal values and provide a note specifying the target press and substrate. If you are handling plate making yourself, apply curves after all other file prep steps are complete.

A plate-ready flexo PDF has specific requirements beyond a standard print-ready PDF. Here is the complete specification for a file that is ready for flexo plate imaging:

Before releasing the file for plate imaging, perform a separation preview in Acrobat Pro (Print Production > Output Preview) to verify each color channel individually. Check that traps are visible, spot colors are correctly named, and no unexpected color channels exist. A single extraneous color separation means an additional plate -- and additional cost -- on press.

For streamlined file prep with automatic distortion and layout, PDF Press handles these transformations directly in your browser. Upload your PDF, configure your plate and cylinder specifications, and export a plate-ready file -- no desktop software installation required.

Barcodes on flexographic packaging are a frequent source of failures. A barcode that scans perfectly on an offset-printed proof may be completely unscannable when printed via flexo because of dot gain in the bar elements. The solution is Bar Width Reduction (BWR) -- a controlled narrowing of each bar in the barcode to compensate for the expected ink spread on press.

BWR values for flexo:

• Film substrates: 0.025 mm to 0.050 mm BWR per bar edge (0.05-0.10 mm total per bar)
• Coated paper/board: 0.038 mm to 0.063 mm BWR per edge
• Corrugated: 0.050 mm to 0.100 mm BWR per edge (or more for direct post-print)

These values are guidelines; the exact BWR should be determined by printing a FIRST barcode test target on the actual press, ink, anilox, and substrate combination and measuring the resulting bar gain with a barcode verifier.

Additional barcode requirements for flexo:

• Print direction: Barcodes should be oriented so that the bars run parallel to the print direction (circumferential). This is called "picket fence" orientation. Bars running across the web ("ladder" orientation) are more susceptible to width variation from impression pressure changes.
• Quiet zones: GS1 specifies minimum quiet zones (the blank space on either side of the barcode). For EAN-13, this is 11 modules on the left and 7 modules on the right. In flexo, maintain at least the minimum -- and add extra margin if possible, because substrate wander on web presses can encroach on tight quiet zones.
• Color combinations: The barcode must have sufficient contrast for scanner readability. Dark bars on a light background is the standard. Avoid printing barcodes in process color builds (multi-color barcodes risk misregistration making bars unreadable). Use a single dark ink (black, dark blue, dark green) on the natural substrate or a white underprint.
• Magnification factor: GS1 allows barcode magnification from 80% to 200%. For flexo, especially on corrugated, use 100% or larger. Smaller barcodes are more sensitive to the bar width variations inherent in flexo printing.

Barcodes in your PDF should be vector (not rasterized) at 1200 DPI equivalent resolution, with BWR already applied. Many barcode generators have flexo-specific BWR settings built in.

Corrugated flexo file prep presents unique challenges because corrugated board is the most demanding substrate in the flexo world. The surface is rough and uneven (the flute peaks and valleys create an inherently inconsistent printing surface), ink absorption is high and variable, and press registration on corrugated converting equipment is less precise than on CI film presses.

Design rules for corrugated flexo:

• Keep it simple: Corrugated printing is not the medium for photographic reproduction or fine gradients. Designs should emphasize bold graphics, solid color areas, and large type. Process color (CMYK) vignettes on corrugated rarely match the quality achieved on film or paper.
• Flute crush compensation: The areas directly over flute peaks receive more impression pressure and produce heavier ink coverage than the valleys. This creates a visible banding pattern called "fluting" or "washboard effect." While this is primarily a press issue, file prep can help: avoid large solid areas in the flute direction, and use slightly lower ink densities in areas prone to flute crush.
• Registration tolerance: Allow at least 1.5 mm registration tolerance for corrugated post-print. This means minimum trap widths of 0.75-1.0 mm, minimum reverse type size of 10 pt in a single color, and no multi-color reverse type under 14 pt. Fine serifs and thin hairlines will not survive the registration variability of corrugated presses.
• Board caliper and warp: Corrugated board changes dimension with humidity. Files should be prepared at the nominal flat dimension, and die-cut tooling tolerances should account for the board's dimensional instability. Your converter will specify the exact finished dimensions and tolerance allowances.
• Pre-print vs. post-print: Pre-print (printing on the flat liner before lamination) allows much higher quality (150 LPI, finer traps, process color photography). Post-print (printing on the finished corrugated board) is limited to 65-100 LPI with coarser traps. Know which process your job will use before beginning file prep.

For laying out corrugated box panels and managing the imposition of multiple boxes per sheet, see our packaging imposition guide.

Flexible packaging PDF preparation is the most technically demanding area of flexo prepress. Flexible packaging includes pouches, sachets, flow wraps, shrink sleeves, and rollstock for form-fill-seal machines. These products are printed on films (polyethylene, polypropylene, polyester, nylon) or multi-layer laminate structures, and the printing can be either surface-printed or reverse-printed (printed on the inside of a transparent film, so the image is viewed through the film).

Reverse printing considerations:

• Mirror the artwork: For reverse-printed films, the entire file must be mirrored (flipped horizontally) so that the image reads correctly when viewed through the film from the opposite side. This includes all text, logos, and barcodes.
• Reverse the print sequence: In surface printing, the lightest color is printed first and the darkest last. In reverse printing, the sequence is reversed -- the color the consumer sees first (closest to the viewing surface) is printed first, and the white opaque background is printed last.
• White opacity layer: Reverse-printed pouches require a white ink layer behind the process colors to provide opacity. This white must cover the entire image area and extend slightly beyond it. The white is a separate spot color channel in your PDF.

Shrink sleeve considerations:

• Distortion in two directions: Shrink sleeves shrink by 40-70% in the circumferential direction when heated. The artwork must be pre-expanded to compensate, so that after shrinking, the design appears at the correct proportions. This is a separate compensation from the plate-mounting distortion and is much larger in magnitude.
• Seam allowance: Shrink sleeves have an overlap seam. The file must include the seam area (typically 5-10 mm) with artwork that matches across the seam for a seamless appearance.

PDF Press supports distortion compensation workflows for both standard plate-mounting stretch and shrink-sleeve pre-expansion, allowing you to handle these calculations directly in the browser without manual scaling in design applications.

After processing thousands of flexo files, the same errors recur with predictable frequency. Avoid these pitfalls to save time, money, and plate remakes:

1. Forgetting distortion compensation. The most expensive mistake: the entire job prints with stretched or compressed artwork. Fix: Always confirm plate thickness and repeat length with the printer before preparing files. Use PDF Press to automate the calculation.
2. Using offset trap widths. Traps of 0.05 mm are invisible to a flexo press. Colors will show white gaps at every misregistration. Fix: Use flexo-specific trap widths (0.15-1.0 mm depending on substrate).
3. No bar width reduction on barcodes. Barcodes print too dark and fail verification. Fix: Apply BWR per GS1/FIRST specifications for your substrate and press.
4. Designing with fine serifs and hairlines. Thin elements fill in or disappear on flexo plates. Fix: Minimum 0.3 pt positive lines, 0.5 pt reverse lines. Use sans-serif typefaces for small text.
5. Excessive total ink coverage. Ink drying failures, blocking, and set-off. Fix: Check total ink limits for your substrate; keep corrugated under 240%.
6. RGB images in the PDF. Colors shift unpredictably when auto-converted at the RIP. Fix: Convert all images to CMYK with the correct ICC profile before placing in the layout. See our prepress workflow guide.
7. Rasterized barcodes. Low-resolution barcode images produce jagged bars that fail scanning. Fix: Always use vector barcodes at 1200 DPI equivalent. Never place a screenshot or JPEG of a barcode.
8. Missing white ink separation. Transparent or metallic substrates print without an opaque background, making the design invisible or washed out. Fix: Include white as a named spot color channel with correct trapping and overprint settings.
9. Ignoring anilox compatibility. Designing fine vignettes for a press equipped with a coarse anilox roller. The vignettes will break up or band. Fix: Confirm the anilox line count and volume before finalizing artwork. Design within the achievable tonal range.
10. Not mirroring reverse-print files. Text and barcodes print backwards on reverse-printed film pouches. Fix: Mirror the entire file for reverse print jobs. Verify by checking that text reads correctly when the film is flipped.

The following workflow summarizes the entire flexo prepress process from design file to plate-ready PDF:

1. Gather press specifications: Obtain the plate thickness, cylinder repeat length, anilox specifications (LPI, cell volume), substrate type, print sequence, and maximum total ink coverage from your printer or converter.
2. Design within flexo constraints: Respect minimum line weights, type sizes, and tonal range limits. Use bold graphics and spot colors where appropriate. Avoid relying on fine detail that flexo cannot reproduce.
3. Prepare color separations: Define spot colors by name. Convert process images to CMYK with the correct ICC profile. Add white ink as a spot channel if required. Verify total ink coverage is within limits.
4. Apply trapping: Use flexo-appropriate trap widths for your substrate. Verify traps in separation preview. Ensure white ink is correctly trapped under process colors.
5. Apply bar width reduction: Generate barcodes as vector art with the correct BWR for your press/substrate combination. Verify quiet zones and magnification factor.
6. Apply distortion compensation: Calculate the distortion percentage from plate thickness and repeat length. Apply compression in the print direction only. PDF Press can handle this step automatically.
7. Apply curve compensation: If you are responsible for plate curves (rather than the RIP operator), apply the correct dot gain compensation curves for your target press and substrate.
8. Export as PDF/X-1a or PDF/X-4: Embed all fonts (or convert to outlines), include bleed, set correct overprint and knockout attributes. Verify the PDF opens with correct separations in Acrobat's Output Preview.
9. Preflight and proof: Run a preflight check against flexo-specific criteria. Generate a contract proof (digital or press proof) for color approval. Annotate the proof with plate and press specifications.
10. Release for plate imaging: Send the approved, plate-ready PDF to the plate department with a job ticket specifying the screening parameters, plate technology, and mounting instructions.

This workflow applies whether you are producing labels, folding cartons, flexible pouches, or corrugated shippers. The specific parameters change, but the sequence of steps remains consistent across all flexographic applications.
